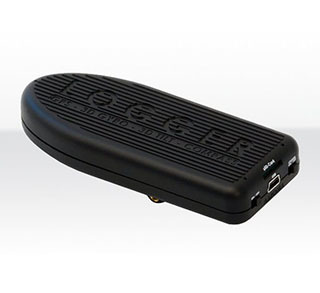

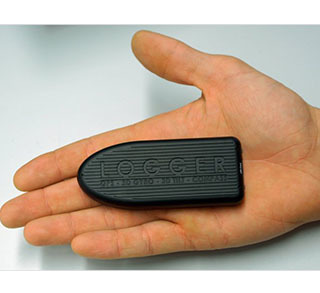

The Aaronia GPS - Logger includes a total of 6 sensors, all of them on the cutting edge of technology, making it the world's first stand-alone data logger with such a variety of sensors. Not to forget is also the very small form factor and the extremely high data rate of approx. 35 logs/second (freely adjustable). The logger with battery weighs just 88 grams.
 安諾尼多功能GPS LOGGER記錄儀共有6個傳感器，全部在技術的尖端，使其成為世界上第一個具有這種傳感器的獨立數據記錄儀。 外形尺寸非常小，數據速率極高，約35logs/秒（可自由調節）。 帶上電池 重量?jī)H達88克。

The main purpose of the GPS logger consists of recording the position and even the orientation of the Aaronia antennas (HyperLOG X, HyperLOG EMI or Magnotracker series). The GPS sensor allows for easy collection and documentation of your measurement position , including elevation information.
安諾尼多功能GPS LOGGER的主要目的是記錄Aaronia天線（HyperLOG X，HyperLOG EMI或Magnotracker系列）的位置、方向。 GPS傳感器可以便捷地收集和記錄您的測量位置，包括仰角信息。

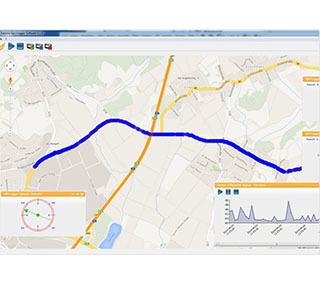

Even more interesting is the Tilt-sensor and the digital compass, hereby the inclination and orientation of the antenna can be recorded and evaluated during the measurement. This special feature allows you to easily create an " RF heat map "
including frequency , direction and strength of an RF source within 360 degrees.
傾斜傳感器和數字羅盤更高端，可以在測量過程中記錄和評估天線的傾斜度和方位。 這個特殊功能可以讓您輕松創建“RF熱圖”，包括RF信號源在360度以內的頻率、方向和強度。

The Aaronia GPS-Logger offers a very fast update rate of up to 35 complete logs with all sensor data per second (on microSDCard and/or USB-Streaming) offering a "real time" display of the unit orientation. At maximum rate the Aaronia GPS-Logger will produce around 50MB/hour (uncompressed)! The maximum usable microSD volume is 2GB, offering a maximum recording time of about 2 days at full speed on the
microSD card. The data rate can be adjusted to much lower rates to keep data volume much lower offering long time recording on the microSD card over weeks or even months.
Aaronia GPS-Logger提供高達35個完整日志的快速更新速率，每秒傳感器數據（microSDCard/USB-Streaming）提供了“實時”顯示單位方向。 以最大的速度，Aaronia GPS-Logger將產生約50MB /小時（未壓縮）！ microSD最大可用容量為2GB，在microSD卡上全速錄制最多可錄制約2天。 數據速率可以調整到更低速率，以保持?jǐn)?shù)據量遠低于在幾秒甚至幾個月內在microSD卡上長時間錄音。

The Aaronia GPS - logger can be used with the internal LiPo battery (standalone) and / or USB (provides unlimited operating time).
The logger has three operating modes :
- Streaming / logging on the internal ( removable) microSD Card, completely independently as a stand- alone device
- Continuous recording via USB port (PC, Linux or MAC OS)
- Transfer of files stored in internal microSD Card (PC, Linux or MAC OS)
Aaronia GPS記錄儀可與內部LiPo電池（獨立）或USB一起使用（提供無限制的操作時間）。
記錄儀有三種操作模式：
- 將內部（可移動）microSD卡串流/登錄，完全獨立設備
- 通過USB端口（PC，Linux或MAC OS）連續記錄
- 傳輸存儲在內部microSD卡（PC，Linux或MAC OS）中的文件

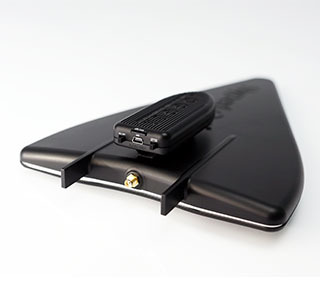

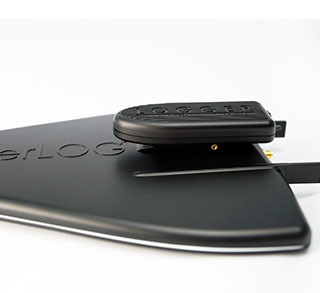

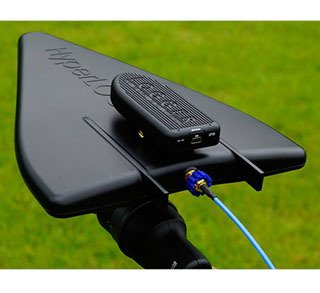

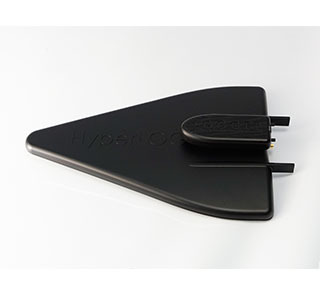

The Aaronia GPS - logger can be mounted directly on HyperLOG X, Magnotracker and HyperLOG EMI antennas (screws and adapter included). It can also be mounted on any other device , car, etc. with the included adapter. This only requires 2 holes to be drilled to attach the supplied adapter.
Aaronia GPS記錄儀與附帶的適配器可以直接安裝在HyperLOG X、Magnotracker和HyperLOG EMI天線（包括螺絲和適配器）上，也可以安裝在任何其他設備，汽車等。 這只需要鉆2個孔就能連接所提供的適配器。
